Vitreum visibile quattuor viarum
Vitreum tubulare specillum constat ex vitro et frame aere inoxydabili. Per hoc, operator possit liquidam substantiam fluentem clare et accurate intueri in agris ciborum, cosmetica, pharmaceutica et industriae chimicarum finium.
- Conspectus
- Producta Commendata

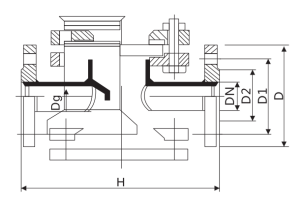

Parametrum
| Dg | H | Vitrum discus | D | D1 | D2 | N- φ d | |
| diametrum | crassitudo | ||||||
| 25 | 200 | 65 | 10 | 115 | 85 | 65 | 4- φ 14 |
| 32 | 260 | 95 | 15 | 135 | 100 | 78 | 4- φ 18 |
| 40 | 260 | 95 | 15 | 145 | 110 | 85 | 4- φ 18 |
| 50 | 320 | 140 | 20 | 160 | 125 | 100 | 4- φ 18 |
| 65 | 320 | 140 | 20 | 180 | 145 | 120 | 4- φ 18 |
| 80 | 360 | 165 | 20 | 195 | 160 | 135 | 8- φ 18 |
| 100 | 360 | 165 | 20 | 215 | 180 | 155 | 8- φ 18 |
| 125 | 440 | 165 | 20 | 245 | 210 | 185 | 8- φ 18 |
| 150 | 440 | 165 | 20 | 280 | 240 | 210 | 8- φ 23 |
Pg=16kg/cm2
