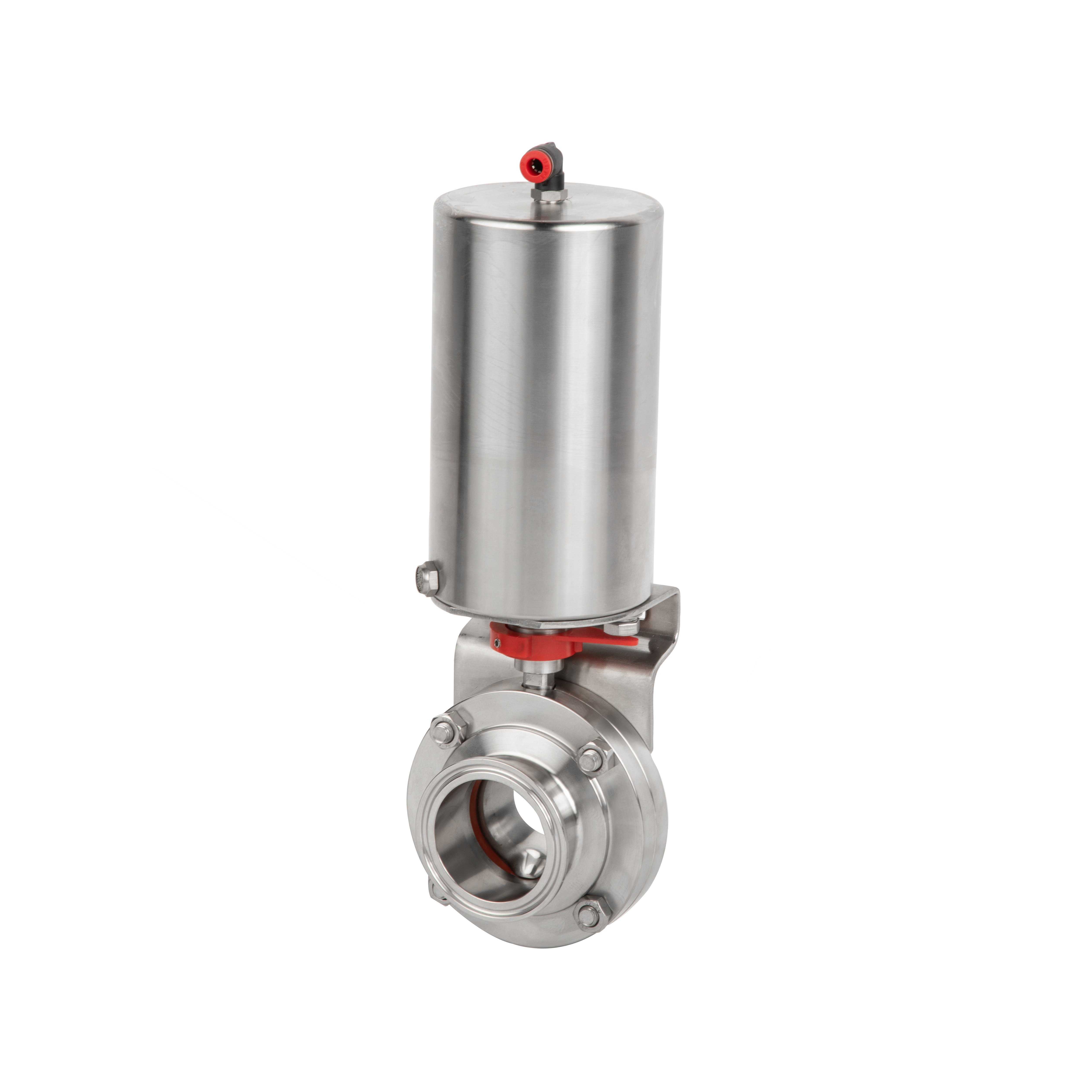

Sanitarius pneumaticus papilio valva

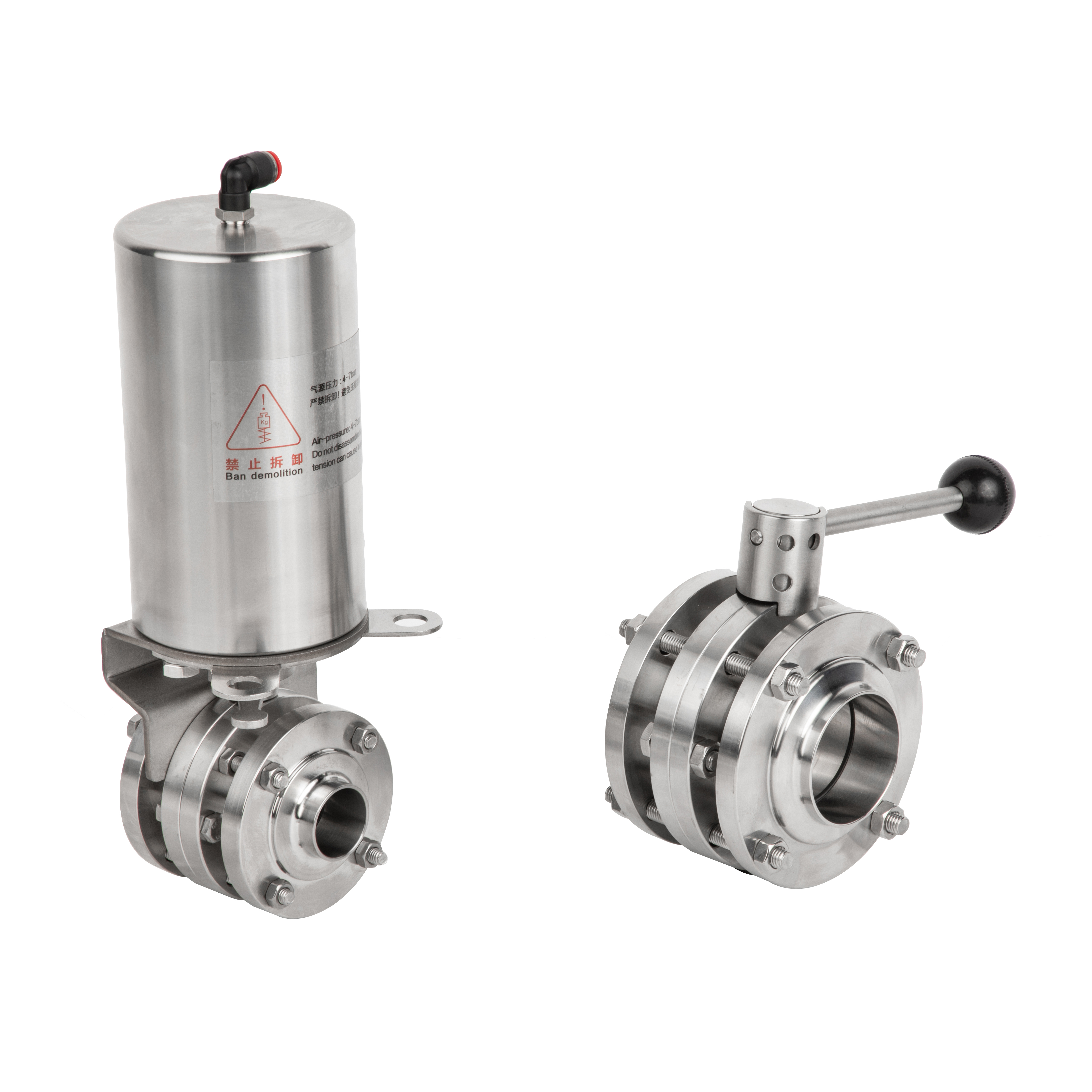

optiones operationis: potest manu controlari cum manubrio claudendi aut automatica actuatione per actuatorem pneumaticum. Actuator disponitur in NC (normaliter clausus), NO (normaliter apertus), vel duplex-actus (aer/aer). Designium eius certam rotationem 90° praebet cum aucto torquente pro stricto sigillo.

Manubrium manuale permittit valvulam fixari in pluribus positionibus pro exacta regulatione fluxus. Optimum est pro applicationibus sanitariis et hygienicis quae efficientem clausuram et controlum postulant.

Conspectus
Producta Commendata

DESCRIPTIO DETAILIATA

Optiones Operantis Vālvulae Papilionariae Series BV6 et Design Actuatoris – Control Manualis et Automatisatus

Vālvula papilionaria aut per actuatorem pneumaticum remote, aut manu per manubrium operari potest, solutiones flexibiles pro latiore spectro applicationum controlis processuum praebens.

Actuator pneumaticus in tribus configurationibus standardis offertur:

Normaliter Clausa (NC)

Normaliter Apertus (NO)

Duplex Agens (Aeris-ad-Aperire \ Aeris-ad-Cludere, A/A)

Design actuator curat ut motus axial pistilli converteatur in exactam rotationem 90° axem valvae. Hoc mechanismus magnopere augit torsionem quando discus valvae tangit anulum sigilli, secure clausuram praestans. Haec torsio aucta praeclaram performance sigillationis tribuit, praesertim in systematibus processuum hygienicorum altae exactionis.

Pro operatione manu facta, manubrium coincidentiae permittit valvam mechanical fixari in variis positionibus, inter quas plene aperta, plene clausa, semis-aperta vel alias positiones intermediarias. Haec facultas facit regulam fluxus accurate et est optima pro applicationibus quae requirunt controllo fluidi adjustabili.

Parametrum

Specificatio Actuator Pneumatici

Pressio Aerea Control: 5–8 bar

Intervallum Temperaturae Operationis: -25°C ad +90°C

Consumptio Aeris: 0.26 × P (bar)

Torques Exitus Maximus:

Aer/Spring: 35 N·m (ad 5 bar)

Aer/Aer: 65 N·m (ad 5 bar)

Actuator disponitur in tres configurationes standardes:

Normaliter Clausa (NC)

Normaliter Apertus (NO)

Aer-ad-Aer (A/A)

Requisitiones Qualitatis Aeris Compressi:

Maximus magnitudo particulae: 0.01 mm

Maxima olei copia: 0.08 ppm

Punctum rorei: 10°C infra temperaturam ambientis aut inferius

Maxima umoris copia: 7.5 g/kg

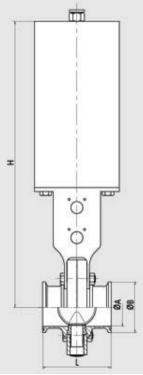

Typus tenax cum pneumatico

DIN standard ligaturae typus cum pneumatico

Magnitudo	A	B	L	H
DN20	20	34.5	66	241.5
DN25	26	50.5	66	243
DN32	32	50.5	66	246
DN40	38	50.5	68	249.5
DN50	50	64	70	257.5
DN65	66	91	72	267
DN80	81	106	92	274.5
DN100	100	119	94	284.5

SMS/3A/ISO standard ligaturae typus cum pneumatico

Magnitudo	A	B	L	H
1”	22.1	50.5	66	241.5
1.5”	34.9	50.5	68	246
2”	47.5	64	70	253.5
2.5”	60.2	77.5	72	261
3”	72.9	91	80	265
4”	97.6	119	94	284.5

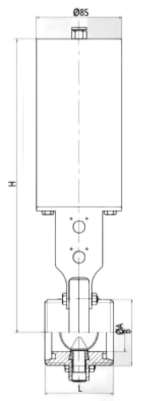

Genus sutorium cum pneumatico

Norma DIN genus sutorium cum pneumatico

Magnitudo	A		S	L	H
Magnitudo	Series1	Series2	S	L	H
DN20	22	23	1.5	44	241.5
DN25	28	29	1.5	44	243
DN32	34	35	1.5	48	246
DN40	40	41	1.5	48	249.5
DN50	52	53	1.5	48	257.5
DN65	70		2	50	267
DN80	85		2	56	274.5
DN100	104		2	60	284.5

Norma SMS/3A/ISO genus sutorium cum pneumatico

Magnitudo	A	S	L	H
1”	25.4	1.65	44	241.5
1.5”	38.1	1.65	48	246
2”	50.8	1.65	48	253.5
2.5”	63.5	1.65	50	261
3”	76.2	1.65	56	265
4”	101.6	2.11	60	284.5

Genus filatum cum pneumatico

Type filatus standard DIN cum pneumatico

Magnitudo	A	B	L	H
DN20	20	RD44*1/6 ”	66	241.5
DN25	26	RD52*1/6 ”	66	243
DN32	32	RD58*1/6 ”	66	246
DN40	38	RD65*1/6 ”	68	249.5
DN50	50	RD78*1/6 ”	70	257.5
DN65	66	RD95*1/6 ”	72	267
DN80	81	RD110*1/4 ”	90	274.5
DN100	100	RD130*1/4 ”	94	284.5

SMS standard filiformis cum pneumatico

Magnitudo	A	B	L	H
1”	22.1	RD40*1/6 ”	66	241.5
1.5”	34.8	RD60*1/6 ”	68	246
2”	47.5	RD70*1/6 ”	70	253.5
2.5”	60.2	RD85*1/6 ”	80	261
3”	72.9	RD98*1/6 ”	80	265
4”	97.38	RD125*1/6 ”	94	284.5

3A norma thread type cum pneumatico

Magnitudo	A	B	L	H
1”	22.1	37.13*8TPIACME	66	241.5
1 1\/2 ”	34.8	50.65*8TPIACME	68	246
2”	47.5	64.16*8TPIACME	70	253.5
2 1\/2 ”	60.2	77.67*8TPIACME	72	261
3”	72.9	91.19*8TPIACME	80	265
4”	97.38	119.25*6TPIACME	96	284.5

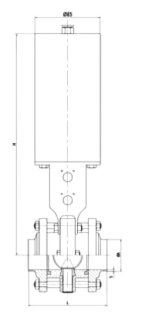

Genus trium partium cum pneumatico

Typus trium partium standardis DIN cum pneumatico

Magnitudo	A		S	L	H
Magnitudo	Series1	Series2	S	L	H
DN20	22	23	1.5	100	241.5
DN25	28	29	1.5	88	243
DN32	34	35	1.5	92	246
DN40	40	41	1.5	92	249.5
DN50	52	53	1.5	92	257.5
DN65	70		2	94	267
DN80	85		2	104	274.5
DN100	104		2	104	284.5
