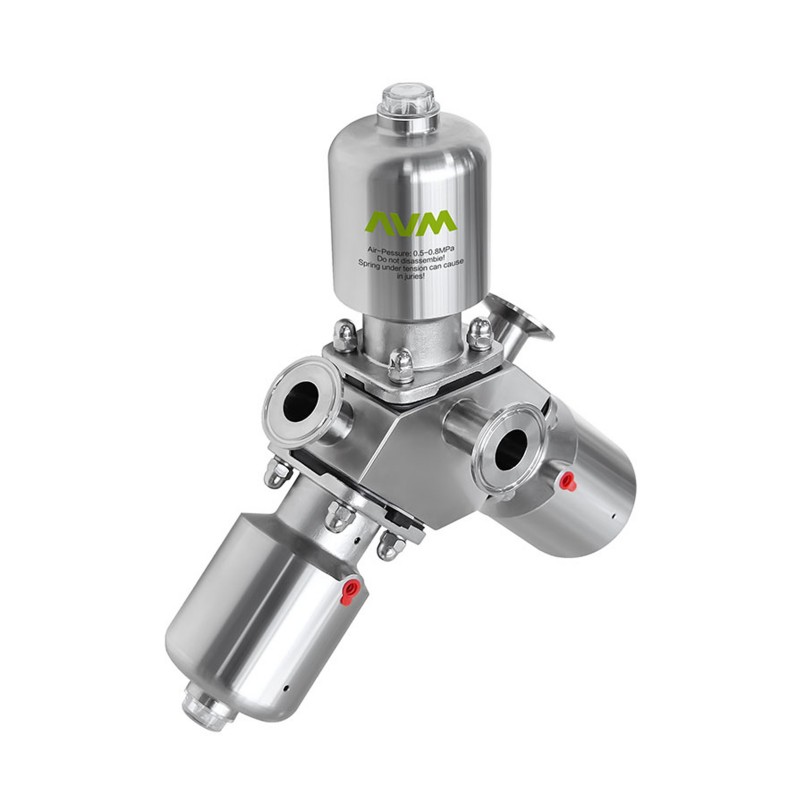

Combined Multi-Port Diaphragm Valve

Multi-Port Diaphragm Valve – Compact, Hygienic Solution for Complex Flow Control

The Combined Multi-Port Diaphragm Valve is an advanced hygienic valve solution engineered to optimize space, reduce dead legs, and simplify piping layouts in high-purity process systems. It is particularly well-suited for pharmaceutical, biotechnological, and food-grade applications where cleanliness, efficiency, and process reliability are critical.

Key Features and Advantages:

◆ Compact and Space-Saving Design
Combines multiple flow paths within a single valve body, minimizing the need for complex pipework and reducing the system’s overall footprint.
◆ Hygienic Construction
Manufactured from high-grade stainless steel (typically SS316L) with smooth internal surfaces, electropolished finishes, and fully drainable designs to meet stringent sanitary requirements such as ASME BPE, EHEDG, and 3-A.
◆ Multiple Configurations
Available in T-, L-, U-, and custom porting designs to accommodate various process requirements such as sampling, distribution, diversion, mixing, or tank switching.
◆ Reduced Dead Volume
Optimized internal geometry significantly reduces dead space and the risk of contamination, supporting effective CIP/SIP processes.
◆ Flexible Operation
Available in manual, pneumatic, or electric actuation. Can be equipped with smart control heads, position sensors, and feedback systems for integration into automated process lines.
◆ Process Efficiency
By consolidating multiple functions into a single valve block, this design reduces the number of welds, lowers the risk of leakage, and simplifies validation and maintenance procedures.
◆ Diaphragm Technology
Utilizes proven diaphragm sealing technology to isolate the product contact area from external mechanical components, ensuring high sealing integrity and sterile operation.

Typical Applications:

Media distribution and collection systems
Bioreactor feed and harvest lines
CIP/SIP routing
Aseptic processing and fill-finish lines
Buffer and media preparation systems
Compliance and Certification:
Manufactured in ISO 9001 certified environments
Complies with FDA, USP Class VI, ASME BPE, and GMP standards
Full traceability of wetted parts and elastomers
Available with complete documentation and validation packages (DQ/IQ/OQ)

Specifications

Custom Block Body Diaphragm Valve
Our custom block body diaphragm valve is engineered for high-purity and hygienic applications, offering a highly compact and efficient solution for complex flow control.

Key Features:

1. True Zero Dead Leg Design

Minimizes product hold-up and eliminates contamination risks, ideal for aseptic processing.

2. Compact and Space-Efficient

Streamlined body design reduces installation footprint and simplifies system layout.

3. Superior Surface Finish

Available with internal surface roughness Ra ≤ 0.4µm, with optional electropolishing (SF1, SF4), in full compliance with ASME BPE requirements.

4. Versatile Flow Path Configurations

Multiple size and porting combinations to suit varied process needs.

5. Reduced Welding and Assembly

Integrates complex piping into a single valve block, reducing the number of joints and welds.

6. Flexible Actuation Options

Available in manual, pneumatic, and automated control versions with optional control top or positioner.

7. Certified Quality Assurance

Compliant with 3-A, FDA, PED 2014/68/EU, and ISO 9001:2008 standards.

8. International Standards Supported

Compatible with DIN, 3-A, SMS, and ASME BPE connection standards.

9. 100% Factory Tested

Each valve undergoes full hydraulic testing and visual inspection to ensure optimal performance and reliability.
